GHOST GEAR PRO RENTALS

FULL SPECTRUM IR Zoom Q2n Camera Microphone



Operations Manual

Includes:

  • Zoom Q2n Camera Microphone (Full Spectrum IR)
  • 2 AA Batteries (not included)
  • USB cable
  • USB power plug
  • USB-MicroSD Card Reader
  • Dual Camera/Light bracket
  • Lens cap
  • Lens hood
  • Lens cloth
  • 64GB MicroSD Card
  • Hard Case



Notes:

These cameras can see in total darkness with an IR illuminator 850nm-940nm. They can also see UV light. You will need an IR illuminator to see in the dark!

This rental purchase is for (3 days). You can contact us on longer rental days or weeks and we will give you or your production team a quote.



(3 days)

The renter must ship back the rental items the day after the 3-day rental unless renting for more days. Our shipping options include insured shipping to you and return shipping back to us. Please keep your receipt when dropping off your package at your nearest UPS store.

EQUIPMENT VALUE: $350

The return shipping option label will be printed and placed in the box for easy return. Please return your rental in the same box with the same packing material. Drop off your rental after your last rental day to the nearest UPS store.



Rental Agreement

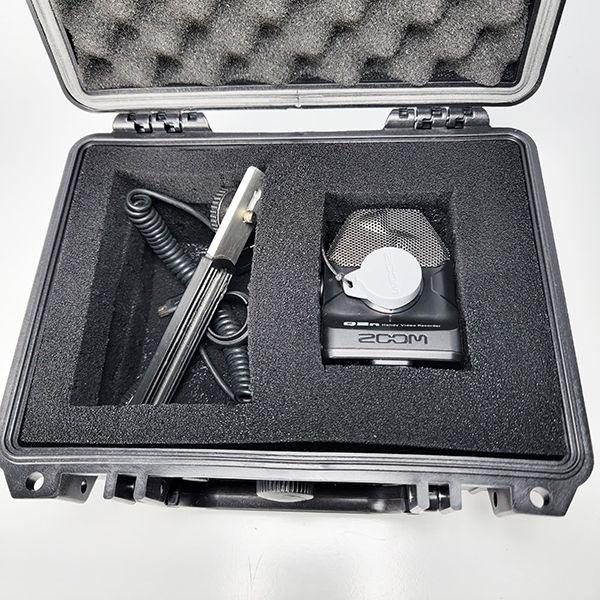

R14 Full Spectrum IR Zoom Q2n Camera Microphone Rental

SKU: RENT-14
$40.00Price
  • GENERAL

    Camera Menu Operations Manual (download pdf)

    FEATURE LIST

    • High-quality 160° wide-angle lens (F2.0/16.6 mm)
    • 10 "Scene" options for use in different lighting environments,
      plus ‘Auto’ setting for automatically adjusting how the camera
      captures specific scene conditions
    • Built-in X/Y stereo microphones capable of handling sound
      levels up to 120 dB SPL
    • Can be used as standalone audio recorder, with data saved
      in WAV format, up to 24-bit/96 kHz
    • 5 field of view (FOV) settings
    • Records directly to micro SD/SDHC/SDXC cards up to 128 GB
      for extended recording times
    • Easy one-button recording
    • Color LCD
    • Support for two HD video modes, 720p and 1080p
    • Video bitrates up to 24 Mbps for improved image quality
    • Frame rates: 1080p/30fps HD, 1080p/24fps HD, 720p/30fps HD,
      720p/24fps HD
    • HDMI video output for connection to HDTVs, selectable between
      NTSC and PAL
    • Records video (with audio) in MOV format
    • Analog-style level control with onscreen level metering and
      2-color status LCD on lens
    • Auto Gain function automatic control over audio input level
    • Stereo input for use with external devices plus support for
      plug-in power
    • Headphone/line-level for fast audio monitoring
    • Low-cut filter for the elimination of low-frequency noise
      and rumble
    • USB interface for live streaming and data transfer
    • Compatible with USTREAM Producer, Flash Live Media Encoder,
      Skype, and other popular streaming applications
    • Webcam and USB mic function (with direct monitoring) when
      used with computers and iOS devices (Apple Camera Connection Kit
      or Lightning to USB Camera Adapter required for use with iOS devices)
    • Operates with two AA batteries for approximately two hours
    • Built-in standard tripod mount

    SPECS

    RECORDING MEDIA: micro SD/SDHC/SDXC cards (Class 10 or higher, up to 128 GB)
    IMAGE SENSOR: 1/3-inch 3-megapixel CMOS sensor
    LENS: F2.0, 160˚ FOV, fixed focus (36 cm – ∞), Focal distance approx. 16.6 mm (35 mm equivalent)
    VIDEO FORMAT: MPEG-4 AVC/H.264 (MOV)
    VIDEO RESOLUTIONS AND FRAME RATES: HD 1080p / 30 fps HD 1080p / 24 fpsHD 720p / 30 fpsHD 720p / 24 fps
    AUDIO FORMATS: WAV (24-bit/96 kHz, 24-bit/48 kHz, 16-bit/44.1 kHz)
    AUDIO FUNCTIONS: Lo-Cut filter (off, 80Hz, 120Hz, or 160Hz), Auto Gain
    IMAGE FUNCTIONS: Five FOV (field of view) steps: (×0.75 / ×0.85 / ×1.00 / ×1.30 / ×1.50) Scene selection: (Auto / Outdoor / Sunset / Night / Concert Light /  Concert Lo-Lit/ Concert Hall / Jazz Club / Dance Club / Rehearsal Studio / Garage)
    POWER SAVE: (Off, 1, 3 or 5 minutes)
    AUTO POWER OFF: (Off, 1, 3 or 5 minutes)
    DISPLAY: 1.77" full-color LCD (160 x 128)
    DISPLAY:

    INPUT: MIC

    TYPE: 120° X/Y stereo
    MAXIMUM SOUND PRESSURE INPUT: 120 dB SPL
    INPUT GAIN: –∞ to +39 dB

    INPUT: EXTERNAL INPUT

    INPUT CONNECTOR: Stereo mini jack
    INPUT GAIN: –∞ to +39 dB
    INPUT IMPEDANCE: 2 k Ω or more Supports plug-in power

    OUTPUTS

    OUTPUT CONNECTOR: Combined line/headphones stereo mini jack
    HDMI CONNECTOR: Micro Type D
    BUILT-IN SPEAKER: 400 mW 8 Ω mono speaker

    USB: OPERATION AS MASS STORAGE

    CLASS: USB 2.0 High Speed
      Note: Mass storage operations are supported with iOS devices Note: USB bus power supported


    USB: OPERATION AS AUDIO INTERFACE

    CLASS: USB 1.0 Full Speed
    SPECIFICATIONS: 44.1 kHz sampling rate, 16-bit
      Note: Audio interface operations are supported with iOS devices Note: USB bus power supported

    USB: OPERATION AS WEBCAM

    SPECIFICATIONS: WVGA/720p video size, 48 kHz/16-bit audio
      Note: USB bus power supported


    GENERAL

    POWER SUPPLY: 2 AA batteries
    AC ADAPTER: ZOOM AD-17, sold separately: DC 5V/1A
    BATTERY OPERATION TIME: About 2 hours or more (when recording 720p/30 fps video using alkaline batteries) About 3 hours or more (when recording 720p/30 fps video using Ni-MH batteries)
    EXTERNAL DIMENSIONS: Maximum dimensions of main unit: 1.8 (depth) × 2.5 (width) × 3.3 (height) inches
    WEIGHT: 0.2 lb
    INCLUDED ACCESSORIES: User guide, AA batteries
